Genuine Suzuki Outboard Service Kit

Bring the listed maintenance parts together in one kit for your Suzuki DF100A, DF115A or DF140A four-stroke outboard. Genuine Suzuki service kit 17400-92824 covers the listed 2013–2015 models (100, 115 and 140 HP), subject to the serial-number checks below.

The base kit combines a water pump repair kit, oil filter, four spark plugs, fuel filter, internal protection anodes, gaskets, O-rings and cotter pin. See the full quantities and individual part numbers below so you can check exactly what you are ordering.

Important for 2015 engines: some require kit 17400-92824+1 with an extra anode and O-ring. Check the serial-number thresholds below before choosing your kit. Check your exact engine model and year; horsepower alone does not confirm fitment.

Choose the service kit alone, or add a thermostat, oil, or both. Thermostat and oils are optional extras, not included with Service Kit Only.

Optional oil bundle: 1 × 5 L plus 1 × 1 L engine oil, and 1 × 1 L gear oil. Included only when you select an option with oil.

Compatible models

• DF100A: 2013–2015
• DF115A: 2013–2015
• DF140A: 2013–2015

Kit Identification

Brand: Suzuki
Current part number: 17400-92824.
Replaces: 17400-92820, 17400-92821, 17400-92822 and 17400-92823.

Important: check 2015 engine serial numbers

Some 2015 models require an extra anode and O-ring.

If your engine serial number is at or above the applicable threshold below, use service kit 17400-92824+1 instead:

• 10003F-510032 and later
• 11503F-510411 and later
• 11503Z-510004 and later
• 11504F-51007 and later
• 14003F-510550 and later
• 14003Z-510036 and later

Choose your service option

Service Kit Only:

Includes all base-kit components listed below. Thermostat, engine oil and gear oil are not included.

Service Kit + Thermostat:

Includes the base kit plus:

1 × Genuine Suzuki thermostat - 17670-90J21.

Engine oil and gear oil are not included.

Service Kit + Oil:

Includes the base kit plus:

1 × Suzuki engine oil 5 L - 99000-M0T4T-05L

1 × Suzuki engine oil 1 L - 99000-M0T4T-01L

1 × Suzuki gear oil 1 L - 99000-M090W-01L

Thermostat is not included.

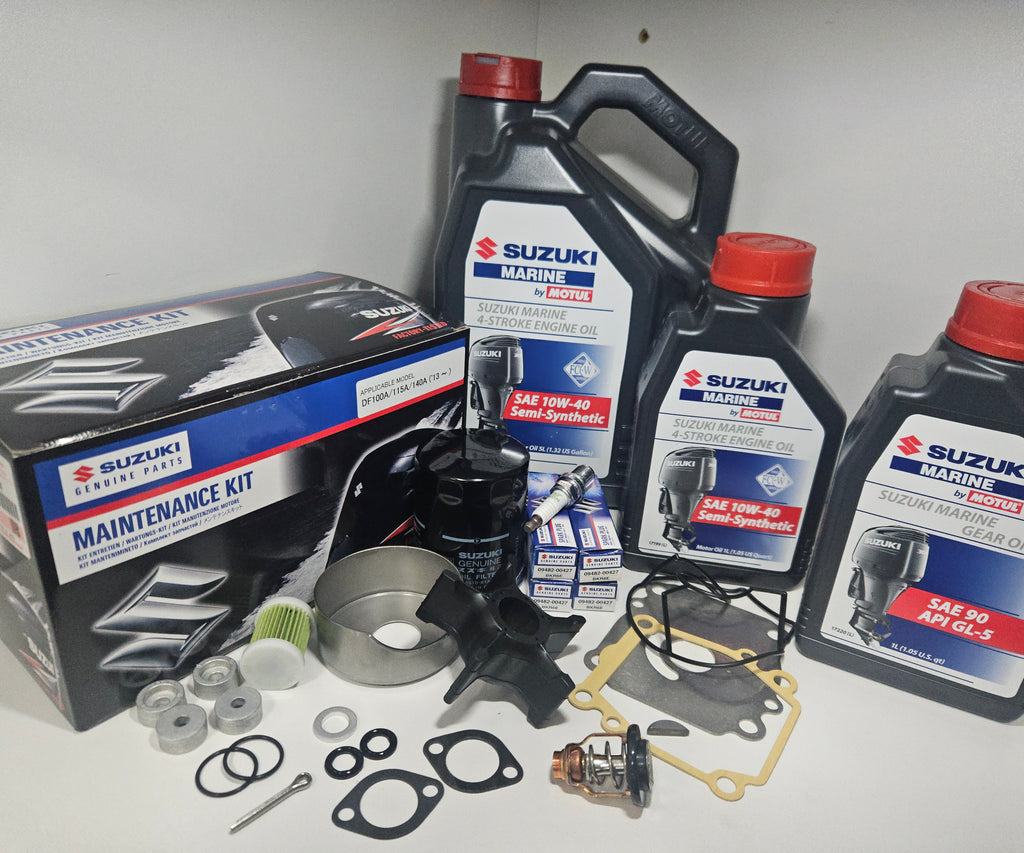

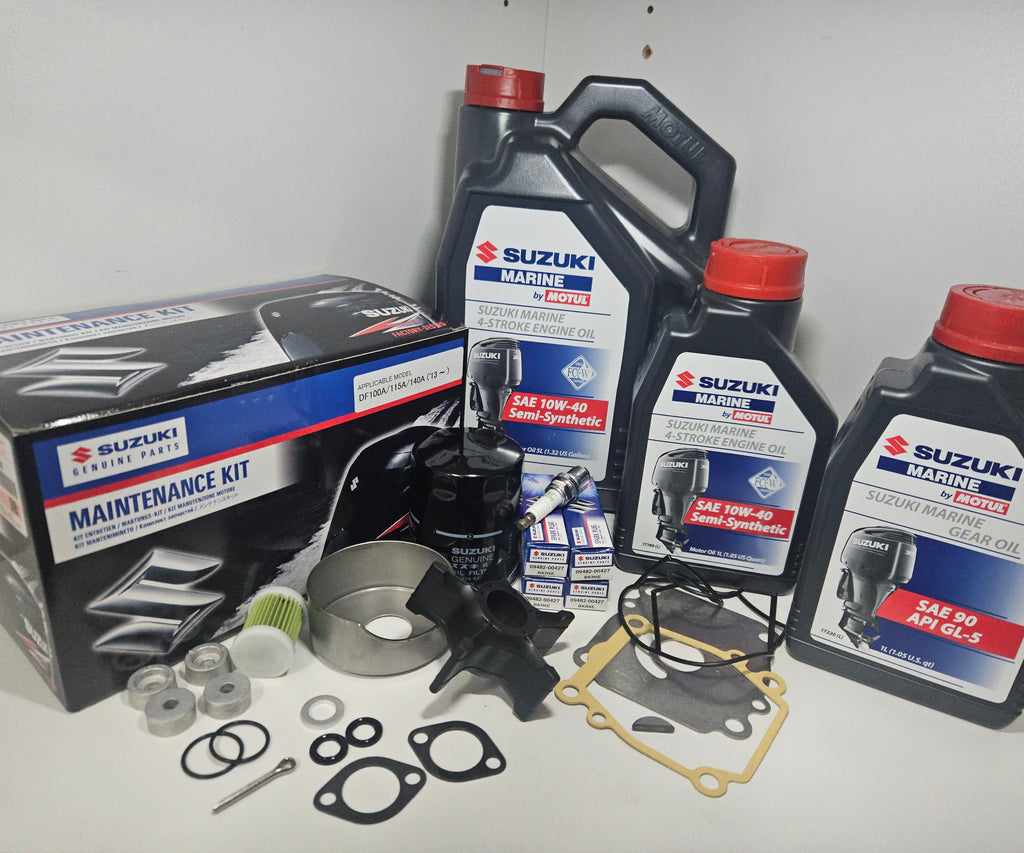

Service Kit + Thermostat + Oil:

Includes the base kit plus:

1 × Genuine Suzuki thermostat - 17670-90J21.

1 × Suzuki engine oil 5 L - 99000-M0T4T-05L

1 × Suzuki engine oil 1 L - 99000-M0T4T-01L

1 × Suzuki gear oil 1 L - 99000-M090W-01L

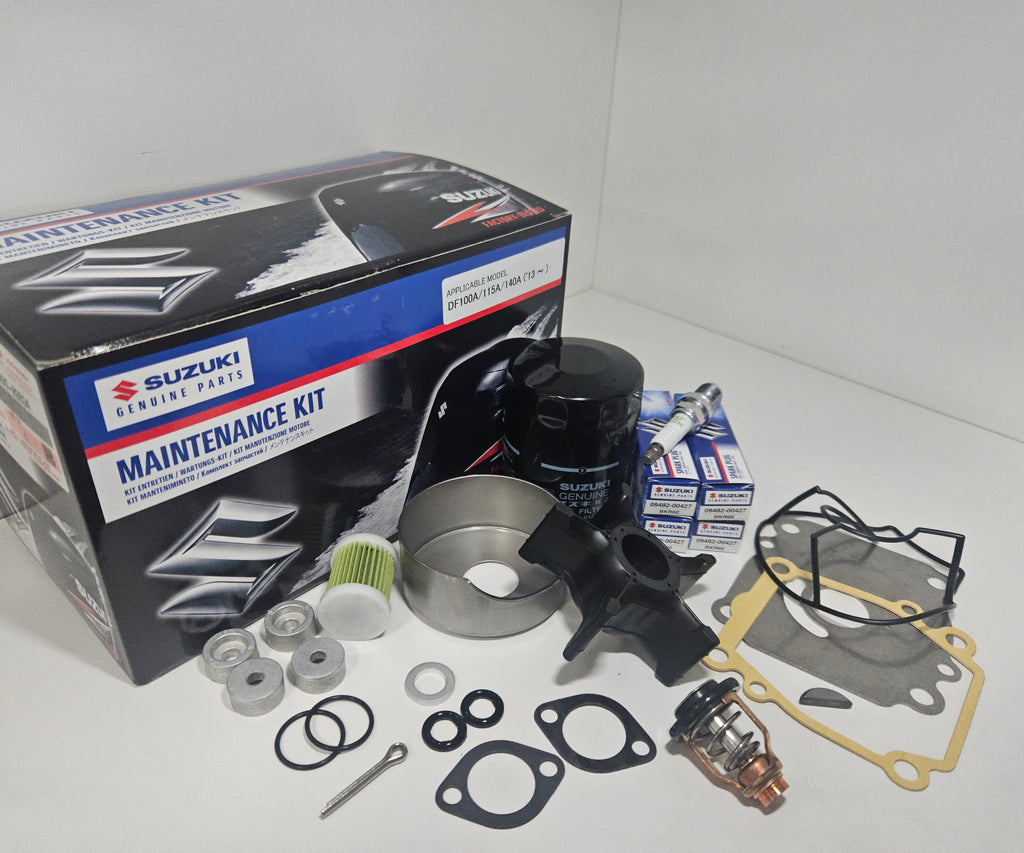

Base-kit contents

• 1 × Water Pump Repair Kit – 17400-92J23
• 1 × Oil Filter – 16510-61A31
• 4 × NGK BKR6E Spark Plugs – 09482-00427
• 1 × Cotter Pin – 09204-03003
• 2 × Gaskets 10x17x1.5 – 09168-10022
• 1 × Gasket 12.5x20x2.5 – 09168-12012
• 2 × O-Rings D:1.9 ID:21.8 – 09280-22019
• 2 × Protection Cover Gaskets – 11265-87E10
• 4 × Protection Anodes – 55321-87J01
• 1 × Fuel Filter – 15412-92J00

Important: External zinc anodes are not included.
