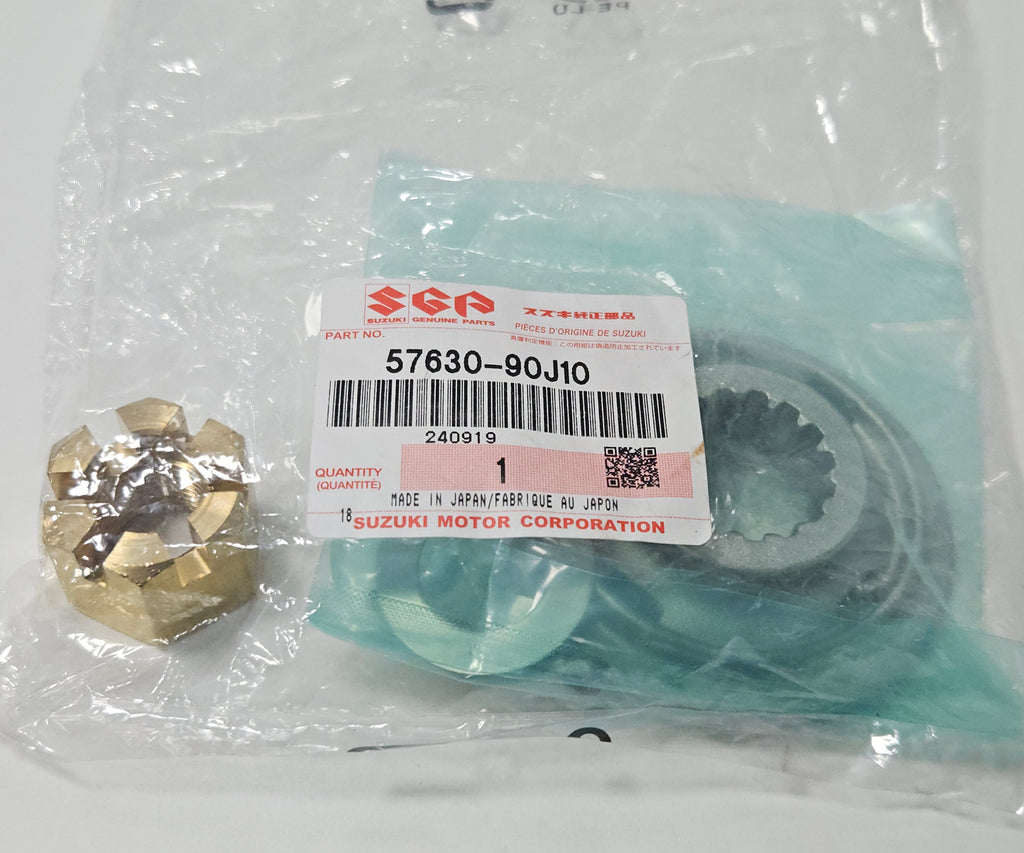

The genuine Suzuki 57630-90J10 propeller nut kit provides the retaining hardware used to secure the propeller on compatible Suzuki Marine outboards. It replaces kit 57630-90J00 and suits the larger-shaft applications listed below.

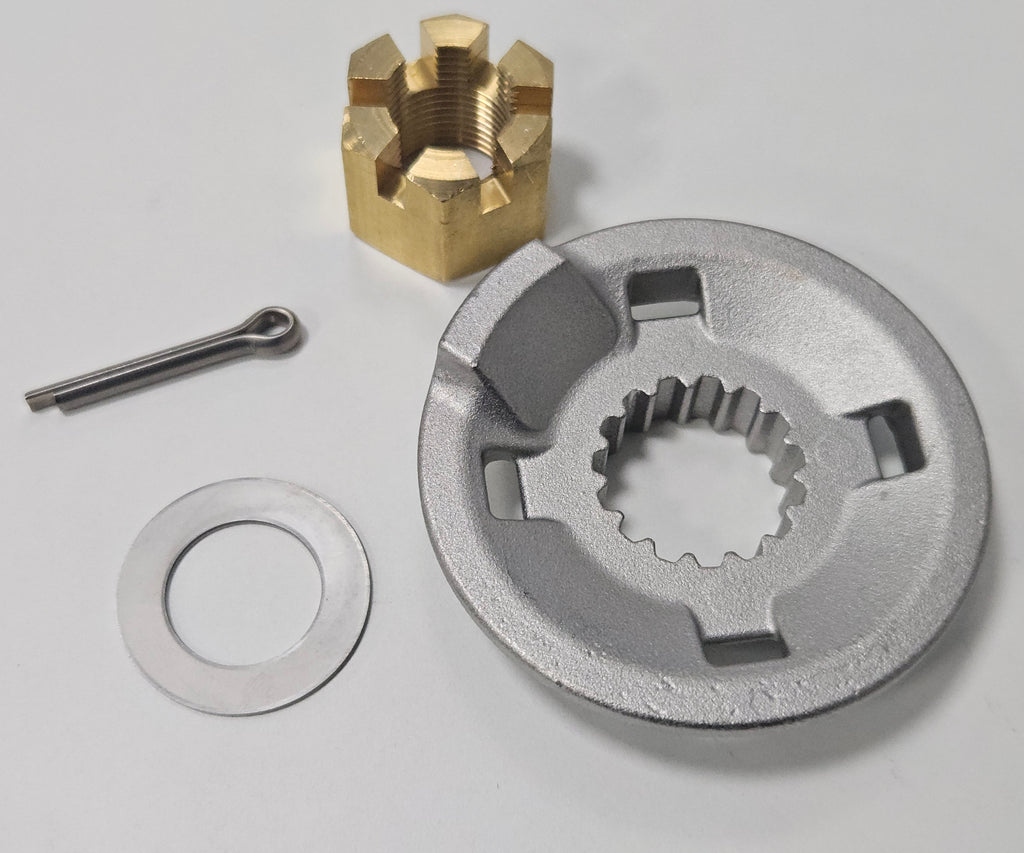

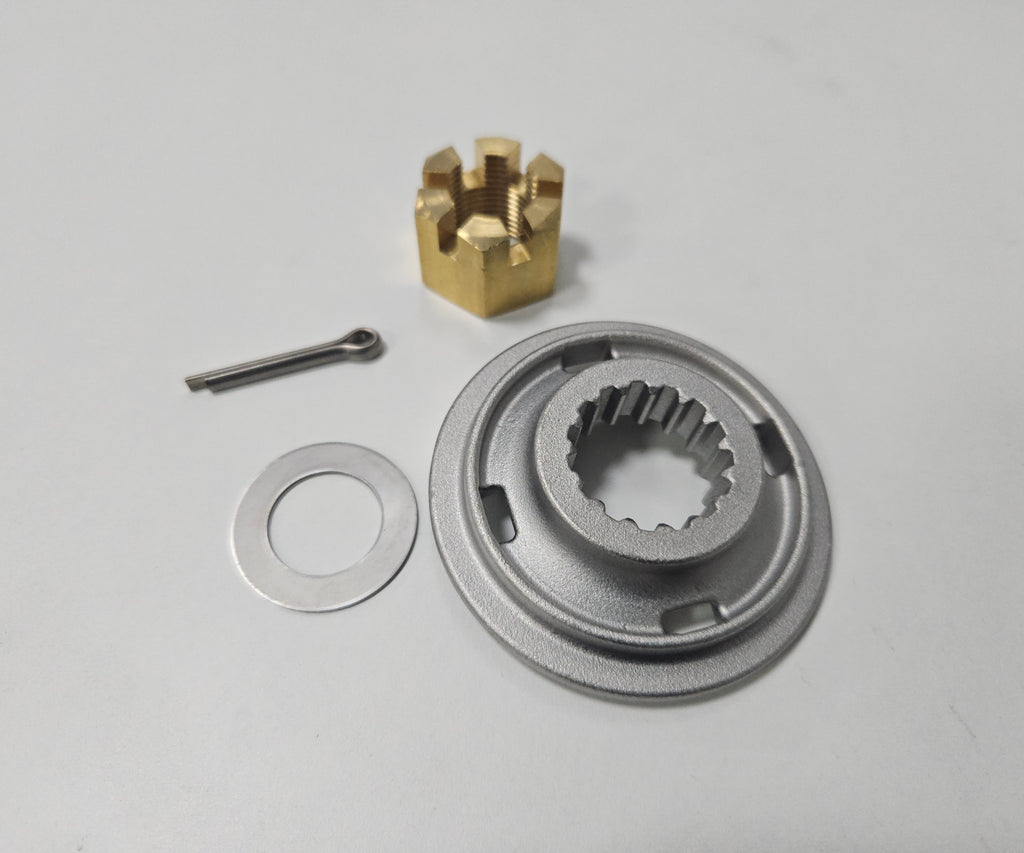

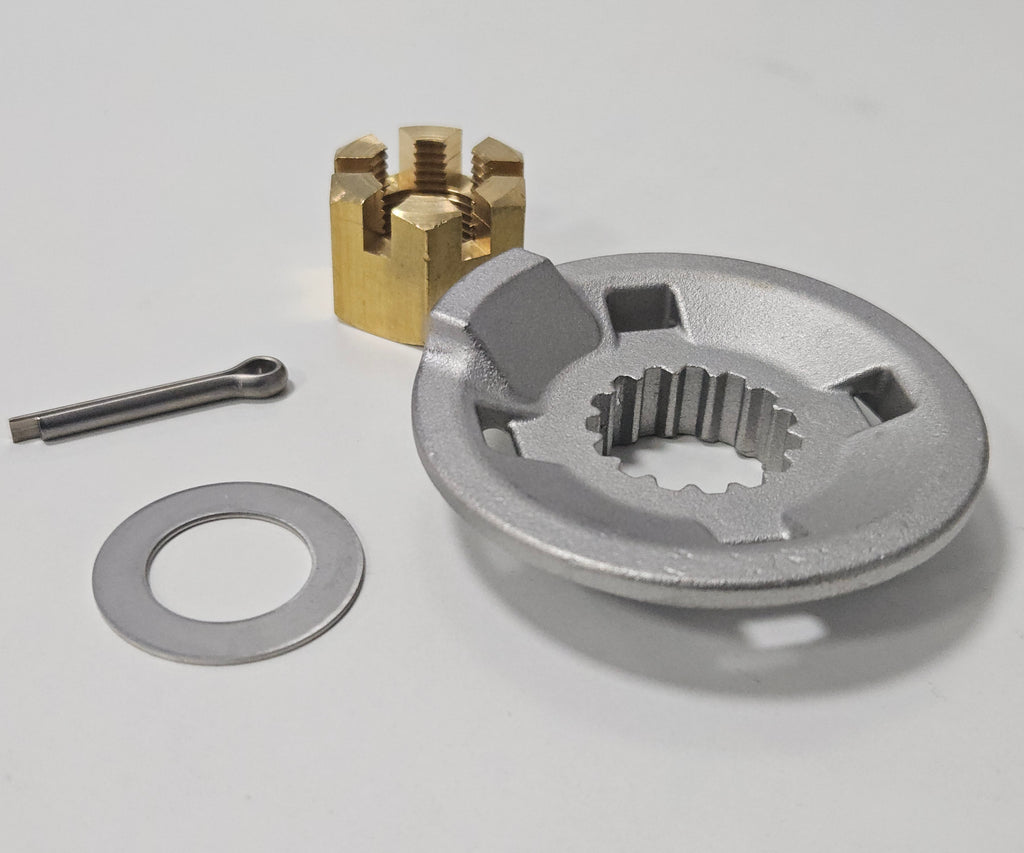

Kit Contents
- 57633-90J10: propeller nut spacer.
- 09141-18005: M18 propeller nut.
- 09160-18028: flat washer, 18.5 x 31 x 1.0mm.
- 09204-03003: split pin, catalogue specification D:3.6, L:25.
Compatibility and Year Guide
The following model-series and production-year ranges are an application guide, not a guarantee of fitment for every engine within each range. Confirm kit suitability against the engine serial number and its propeller hardware before ordering.
- DF70A, DF80A and DF90A: 2009 onwards.
- DF115A and DF140A: 2013–2021.
- DF115BG and DF140BG, drive-by-wire: 2021 onwards.
- DF100C, DF115B and DF140B: 2022 onwards.
- DF50AV and DF60AV, high-thrust models: 2014 onwards.
- DF75: listed application; confirm the exact model and serial number before ordering.
Important: The DF50AV and DF60AV applications refer to the AV high-thrust models, not standard DF50 or DF60 models. Do not choose this kit by horsepower alone or assume it fits every A-series engine. The older non-A DF60/DF70 thinner-shaft application uses a different kit, 57630-94500.
Contact Warragul Marine with your full engine model and serial number if you need help confirming the correct hardware kit.
Product Details
- Genuine Suzuki Marine OEM propeller hardware kit.
- Part number: 57630-90J10.
- Supersedes: 57630-90J00.
- Includes a spacer, nut, flat washer and split pin.
- A useful spare kit to carry on board.
