Part number 57630-93L00 is a genuine Suzuki Marine Watergrip Propeller Hardware Kit. It provides all the necessary heavy-duty, marine-grade hardware required to safely mount and lock down a propeller on Suzuki Watergrip-equipped outboards.
Engine & Propeller Fitment
This kit is engineered specifically for high-power, large-gearcase Suzuki outboards equipped with the specialized Watergrip propeller system:
- Compatible Models: Suzuki DF150A up to DF300AP four-stroke outboard motors (primarily 2018 model years and newer)
- Retrofit Use: If you are installing a newer Watergrip series propeller onto a pre-2018 engine model, you must use this hardware kit alongside the matching Watergrip thrust washer/bushing stopper

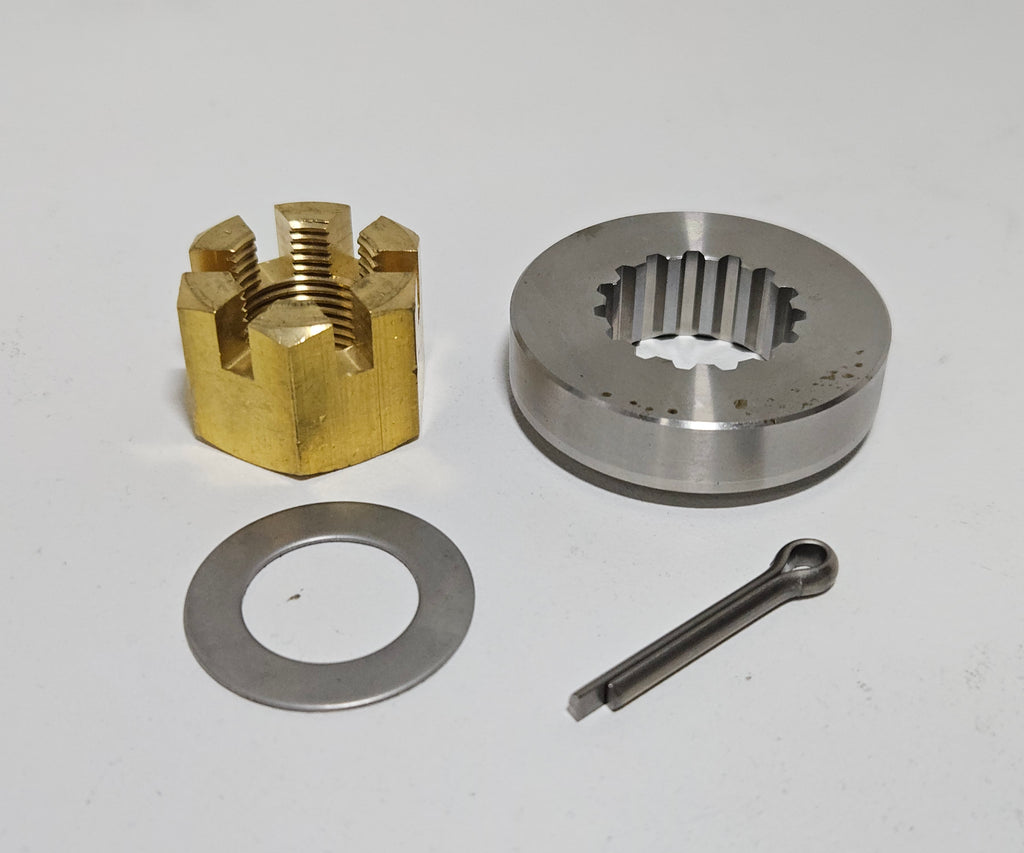

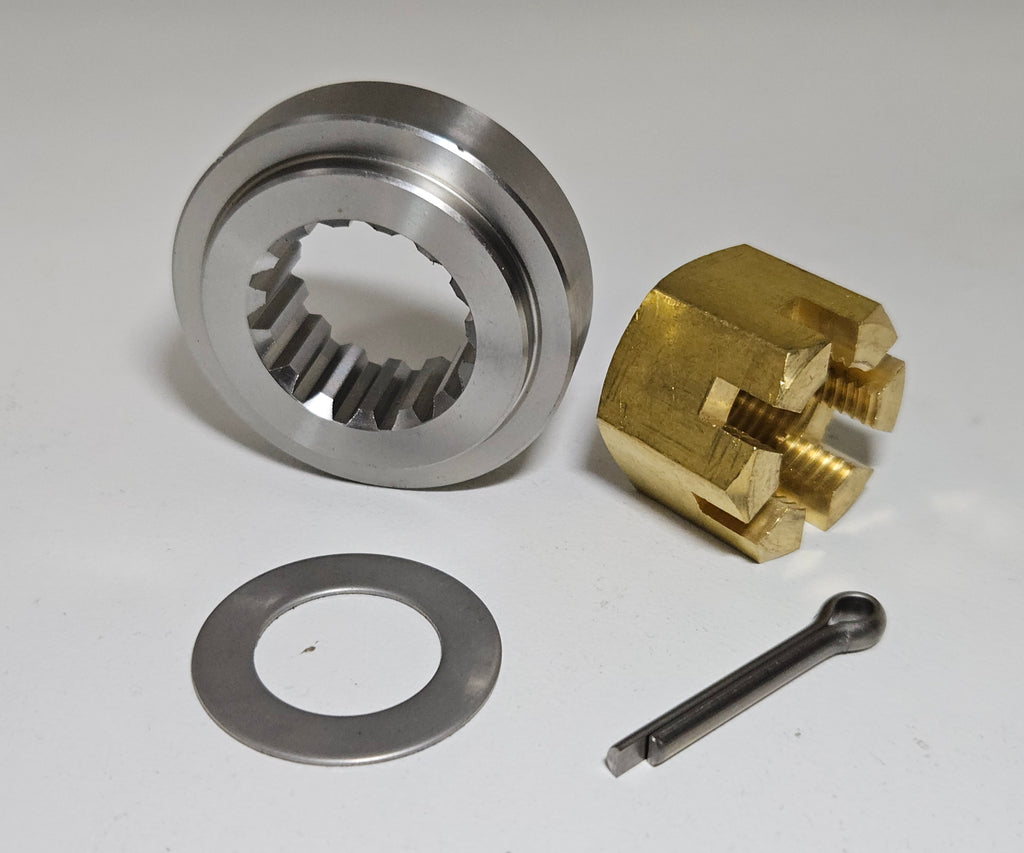

Kit Contents
The kit contains the four foundational components required for a complete prop changeout:
- Propeller Castle Nut – Threaded locking nut. See also: Suzuki Outboard, Nut 18mm, 09141-18005
- Propeller Spacer – Fits precisely over the splines - 57633-93L00
- Flat Washer – Distributes pressure evenly - 09160-18028
- Cotter Pin / Split-Pin – Locks the castle nut securely onto the shaft. See also: 09204-03003, Suzuki Outboard, Prop Pin
