Genuine Suzuki Marine Propeller Hardware Kit — Type V

Part Number: 57630-94500

Type: Propeller Nut Hardware Kit (Type V) — 15-spline shaft

What Does This Kit Do?

The 57630-94500 is a genuine Suzuki Propeller Nut Hardware Kit (Type V) used for securing the propeller to the outboard motor shaft. This V-Style kit fits 15-spline propeller shafts on various 2-stroke and 4-stroke Suzuki marine outboards.

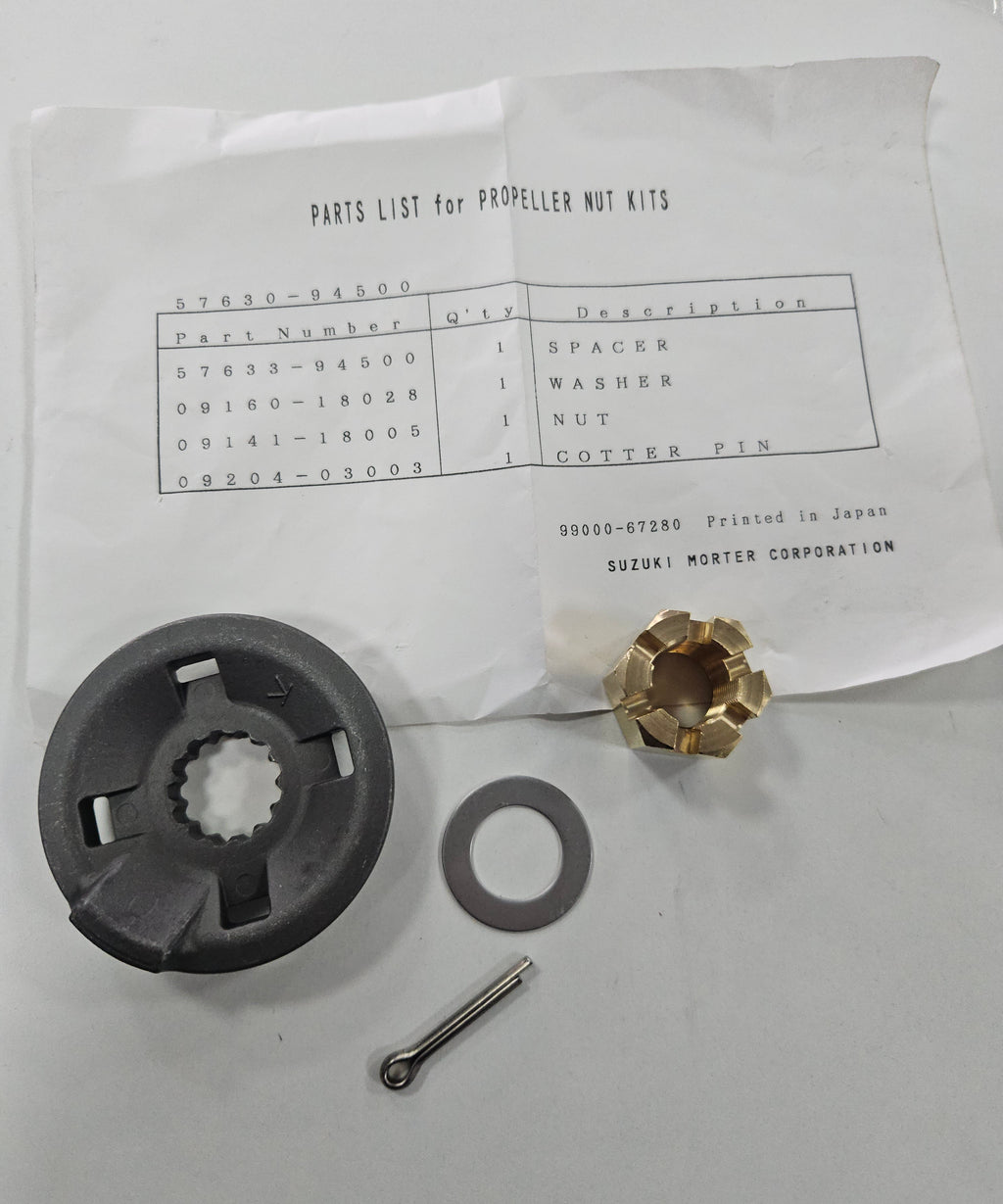

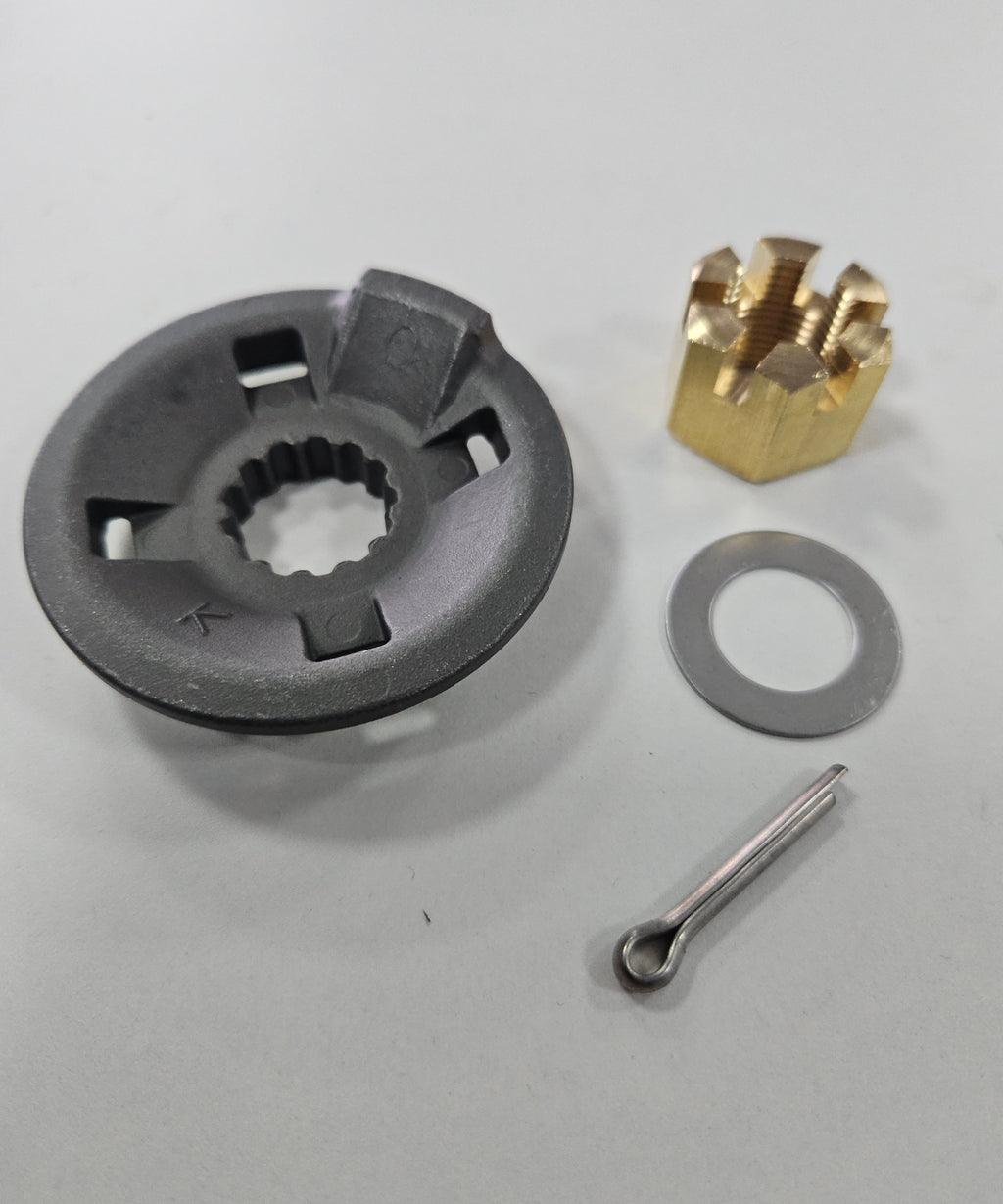

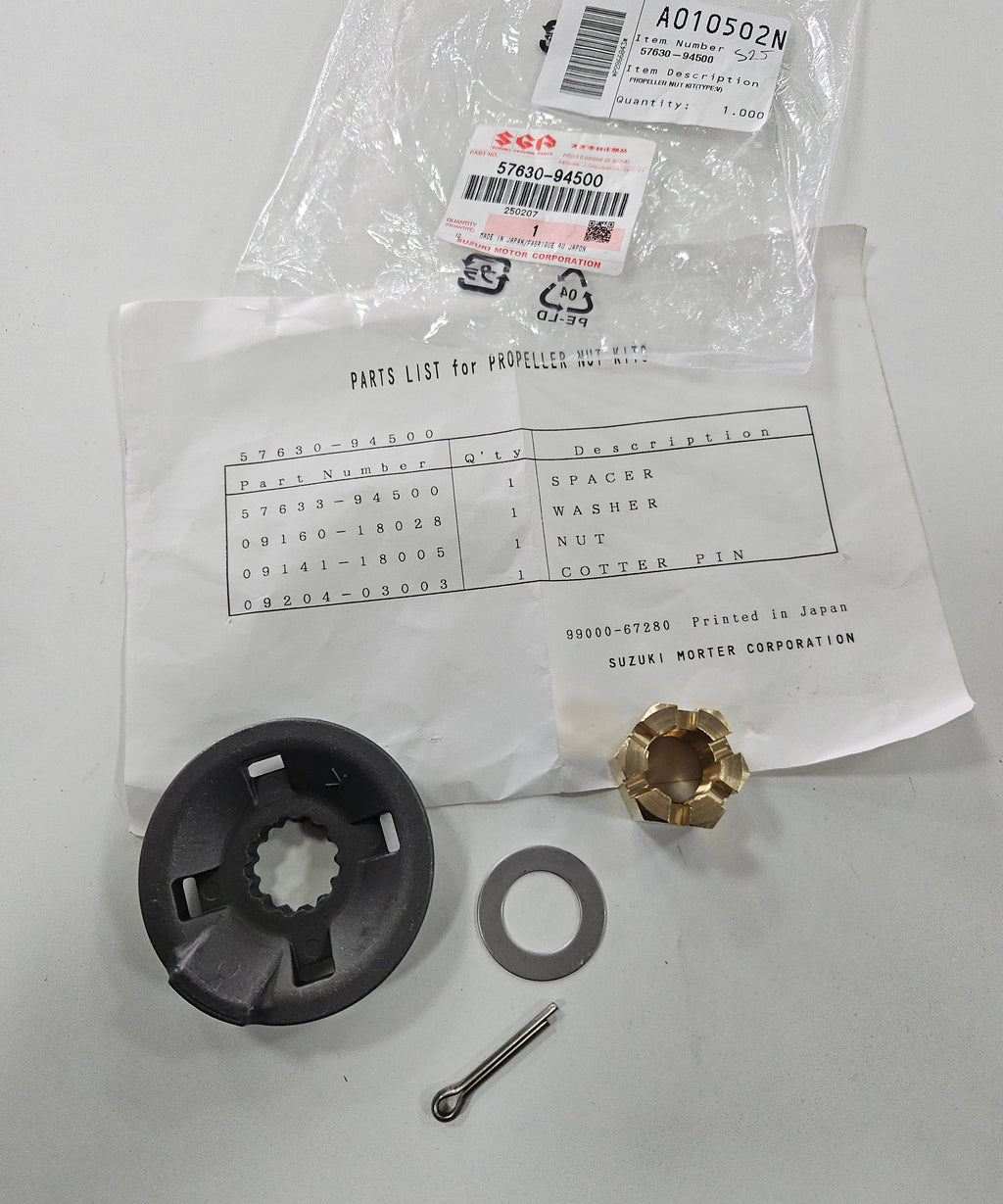

Kit Contents

• 57633-95501 — Spacer (alternate)
• 09141-18005 — Nut (M18) — 18mm Brass Castle Nut
• 09204-03003 — Pin (D:3.6, L:25) — Cotter Pin
• 09160-18028 — Washer (18.5 x 31 x 1.0) — Flat Washer

Compatibility

Suzuki 2-Stroke Outboards:

• DT75, DT85, DT90, DT100, DT115, DT140

Suzuki 4-Stroke Outboards:

• DF60 and DF70 — 1998 to 2009 (non-A models only — thinner shaft versions)

Cross-Compatibility: Also fits select Johnson, Evinrude, or BRP 90–140HP 4-stroke outboards that share the Suzuki lower unit design (cross-references with OMC/BRP part #5030976).

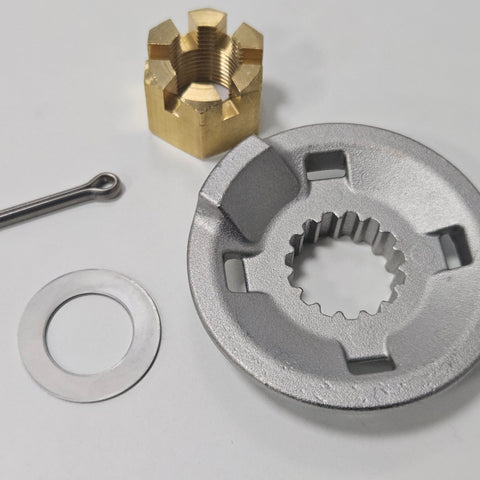

Important: This kit suits the thinner shaft (Type V / 15-spline). It is not compatible with A-series DF models which use a thicker shaft — see part 57630-90J10 for those models.

Not sure if this fits your engine? Contact us with your engine serial number and we'll confirm compatibility for you.

Product Details

• 100% Genuine Suzuki OEM kit
• Type V — 15-spline, thinner shaft specification
• Complete hardware kit for correct propeller installation
• Recommended to carry a spare kit on board
